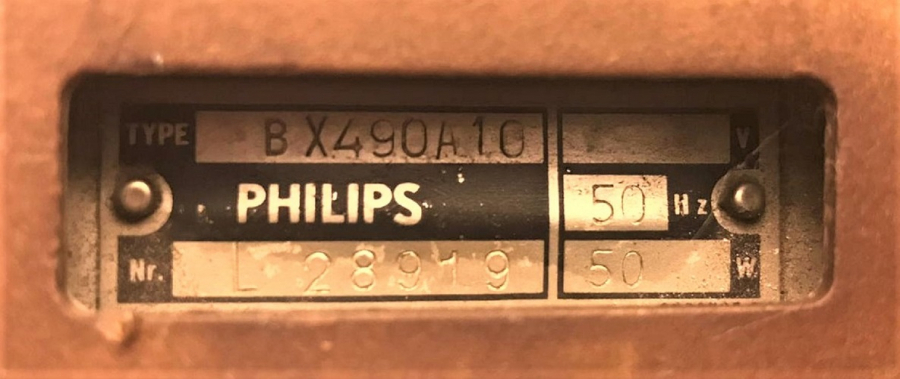

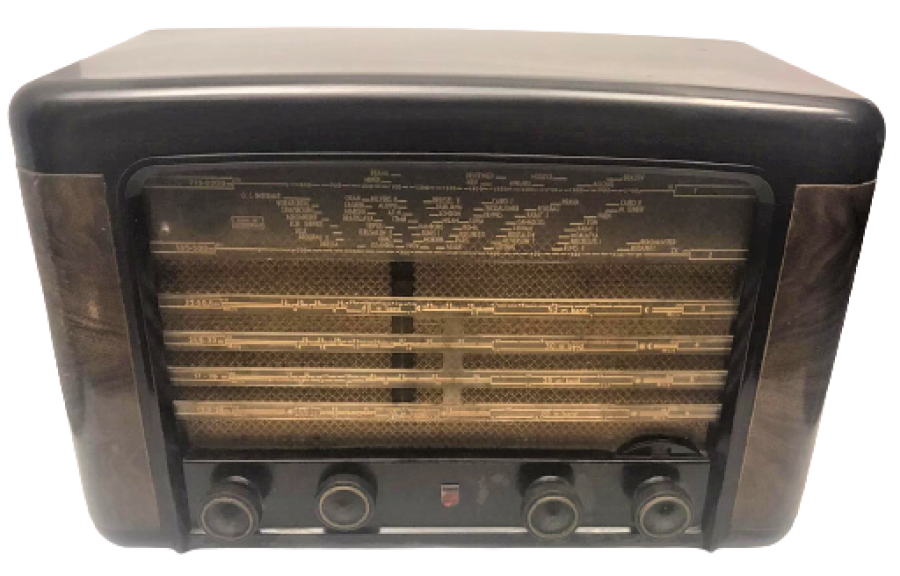

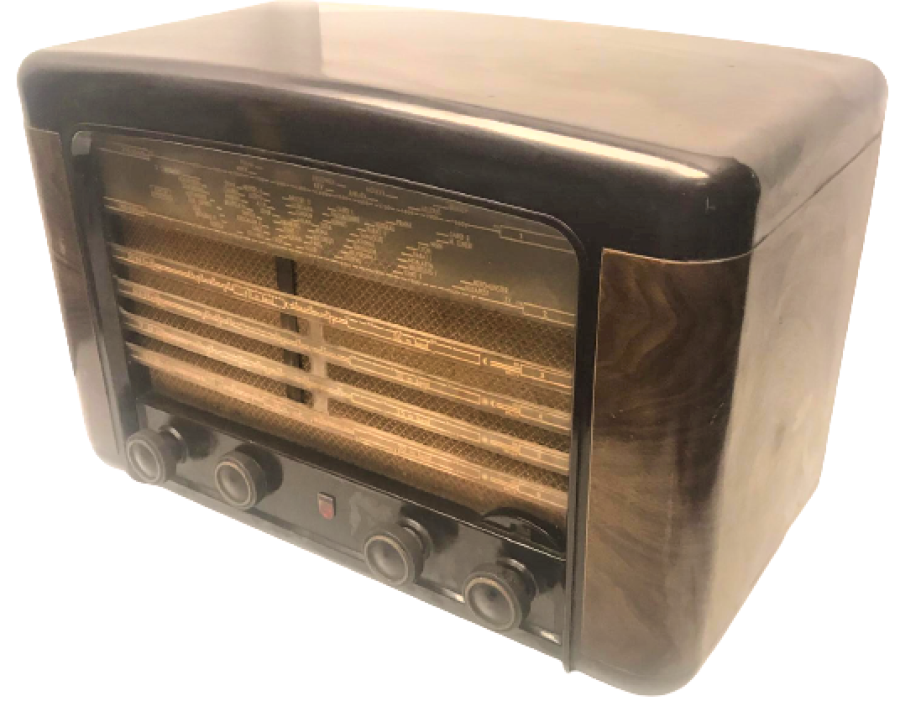

1949 YILLARIN BX490A10 PHILIPS RADYO LAMBALI BAKALİT COK TEMİZ RADIO 220 VOLT 6 LAMBALI 6 KANAL TÜM TEKNİK BİLGİLER ALT TARAFDA YAZMAKTADIR
Ürün Kodu: 15397
Kargo: Gün
Ürünlerin son satış fiyatları üzerinden %10 müzayede komisyonu ve kdv'si alınacaktır.
|
| ||||
| Year: 1949/1950 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECH21 EAF42 EAF42 EBL21 EM34 AZ1 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |

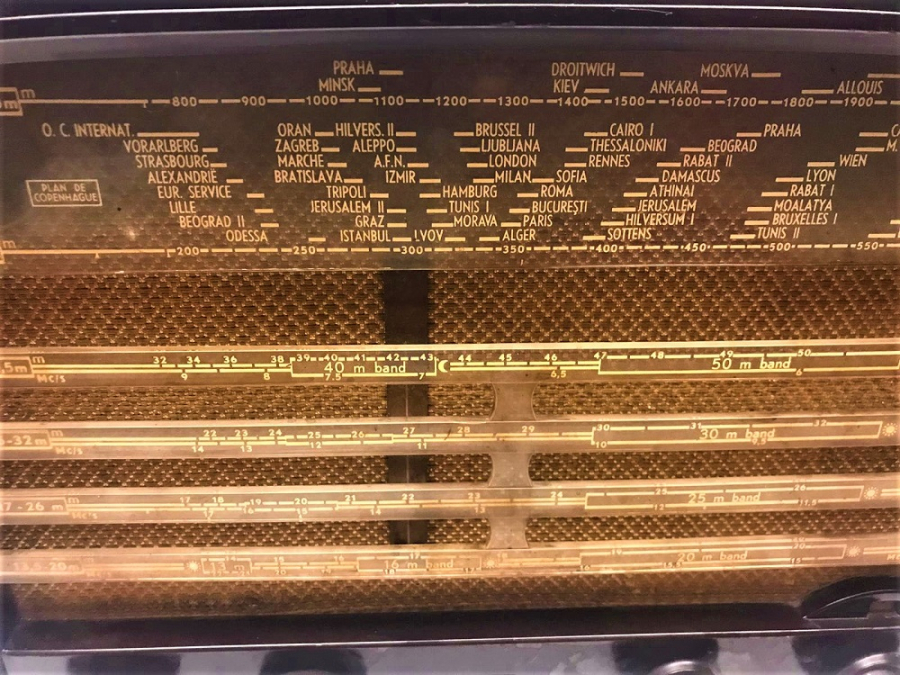

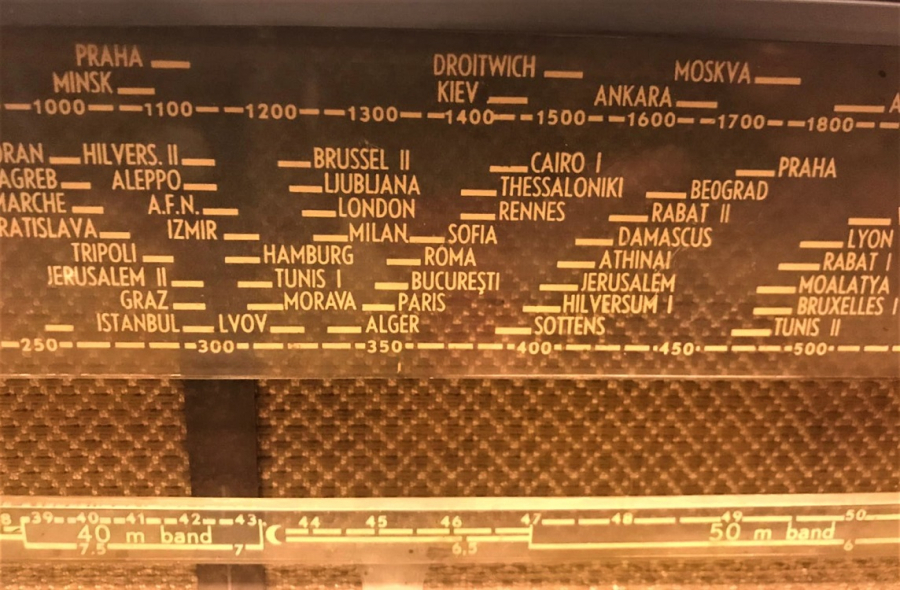

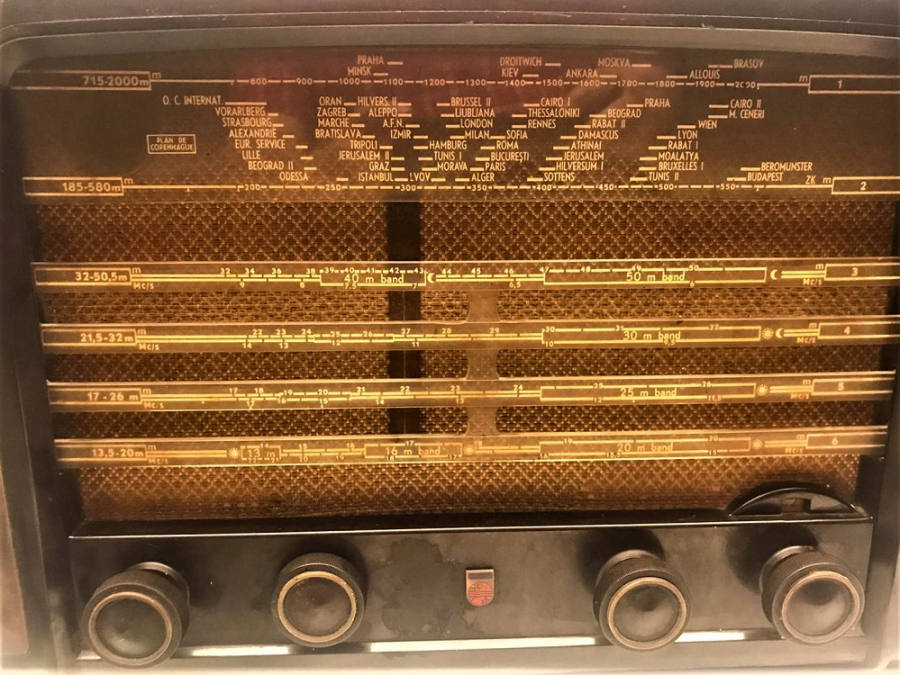

| Wave bands | Broadcast, Long Wave and more than two Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 inch = 48.3 cm |
| Power out | 4.5 W (unknown quality) |
| from Radiomuseum.org | Model: BX490A - Philips; Eindhoven tubes |
| Material | Bakelite case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 460 x 300 x 240 mm / 18.1 x 11.8 x 9.4 inch |
| Notes | This radio can accomodate EAF41 as well as EAF42: see wiring diagram. AM radio for external antenna:
Loudspeaker: 9696-05 (5Ω, with soundwave diffuser). Dial lamp: 2x 8045D (E10, 6.3V/320mA). |
| Fiyat 1 | Fiyat 2 | Artırım |
|---|---|---|
| 10 ₺ | 200 ₺ | 10 ₺ |
| 200 ₺ | 500 ₺ | 25 ₺ |
| 500 ₺ | 1.000 ₺ | 50 ₺ |
| 1.000 ₺ | 2.000 ₺ | 100 ₺ |
| 2.000 ₺ | 5.000 ₺ | 250 ₺ |
| 5.000 ₺ | 10.000 ₺ | 500 ₺ |
| 10.000 ₺ | 25.000 ₺ | 1.000 ₺ |
| 25.000 ₺ | 40.000 ₺ | 2.500 ₺ |
| 40.000 ₺ | 100.000 ₺ | 5.000 ₺ |
| 100.000 ₺ | 200.000 ₺ | 10.000 ₺ |
| 200.000 ₺ | 500.000 ₺ | 25.000 ₺ |
| 500.000 ₺ | 1.000.000 ₺ | 50.000 ₺ |
